Technical Parameter
| Conventional parameters | |
|---|---|

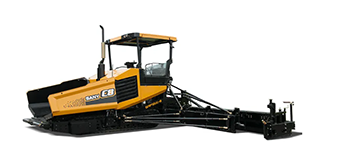

| Equipment Model | SAP120C-8 |
| Model Abbreviation | 120 |
| Width Range | Ultra Large(9meters and above) |
| Engine | |
| Model | Sany Power D07S3 |
| Rated Power (kW) | 170 |
| Machine Dimensions | |
| Working/Transport Length (mm) | 6790 |
| Transport Width (mm) | 3470 |
| Transport Height (mm) | 3890 |
| Working Parameters | |
| Basic Paving Width (mm) | 2500 |
| Maximum Paving Width (mm) | 12000 |
| Maximum Paving Thickness (mm) | 350 |
| Paving Speed (m/min) | 24 |
| Travel Speed (km/h) | 5 |
| Theoretical Productivity (t/h) | 1100 |
| Hopper Capacity (m³) | 8.5 |
| Screed Parameters | |
| Screed Type | SF250Composite Screed |
| Heating Method | Electrically heated |
